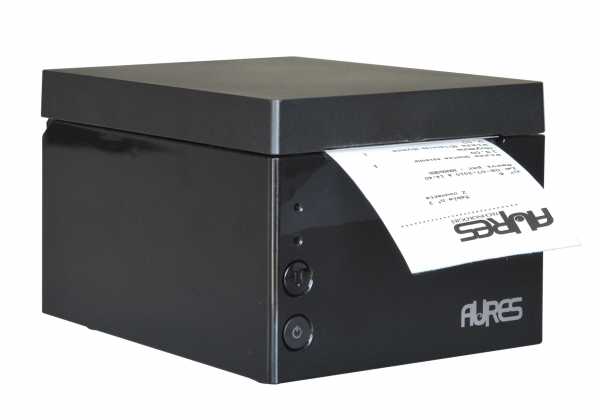

The Aures ODP333 Thermal Receipt Printer is a low-cost printer, ideal for use in most retail environments. This compact, minimalist thermal printer offers a splash-proof cubic design, a convenient front receipt printout, and a low power motherboard, together with a triple interface.

Specially designed for point of sale and service applications, the ODP 333 by AURES is a thermal receipt printer which features a triple interface (including Ethernet) in a minimalist compact cubic style.

With its front receipt printout, it ensures optimum protection against dust, crumbs and liquid splashes in tough environments such as kitchens, restaurants, bars, bakeries and the like.

Thanks to its Energy Star certification, it switches automatically to standby mode in less than one second after it stops printing, allowing average power savings of at least 30%  embodying and thus respecting the values of Green IT.

The soft matte texture of the ODP 333 is enhanced by touches of black lacquer finish on the sides of the printer, for a modern style and elegance.

• Print method: Direct, thermal
• Print speed: 160mm/sec
• Interfaces: Triple interface (RS232 Serial – USB & Ethernet dual (non-modifiable)
• Internal memory: 64MB
• Width: 79.5mm +/- 0.5 mm
• Thickness: 0.065 – 0.1 mm
• Drivers: Windows (XP, 2000, 2003, Vista, WEPOS)/OPOS/Linux/Java POS
• Power supply: External 24V – 2.5A
• Auto cutter: guillotine type. Max. 30 cuts/minute

• A CUBIC THERMAL RECEIPT PRINTER FEATURING A TRIPLE INTERFACE AND A LOW POWER MOTHERBOARD




  Model	ODP 333
  Print method	direct, thermal
  Print speed	160 mm / sec
  Effective Print Width	72mm / 512 dots/line
  Characters per line	Font A: 42 columns, 180dpi Font B : 56 columns, 180dpi / 64 columns, 203dpi
  Internal memory	64MB
  Motherboard	low power consumption – automatic standby mode enables 30% less power use on average
  Paper loading	automatic
  Thermal printer
  Width	79,5 mm +/- 0,5 mm
  Thickness	0,065 – 0,1 mm
  Max. roll diameter	83mm
  Characters
  Alphanumeric	95
  Extended graphic	128 / 18 pages
  International characters	14
  Barcodes	UPC - A, UPC-E, EAN-8, Code 39, Code 93, Code 128, ITF, Codabar, 2D PDF417, QR Code
  Emulation	ESC/POS compatible
  Drivers	Windows (XP, 2000, 2003, Vista, WEPOS) /OPOS / Linux / Java POS
  Sensor	end-of-roll, near end-of-roll, cover open
  end-of-roll, near end-of-roll, cover open	1 dual port (for 2 drawers) - RJ11 6-pin connector
  Interfaces	Triple interface RS232 Serial - USB & Ethernet dual (non-modifiable)
  Power supply	External 24V - 2.5A
  Paper Auto cutter	guillotine type Max. 30 cuts/minute
  Cut type	total or partial
  Other features
  MCBF	35-50 million lines depending on type of use and paper thickness Printer head lifespan: 160km Paper cutter lifespan: Approx. 1.5 million cuts
  Operating temperature	-20 to +60°C
  Operating humidity	10% to 90% (without condensation)
  Dimensions (depth x width x height)	165 x 135 x 105.02mm
  Weight	1kg approximately
  Colour	Black or white







  ODP 333

  Splash-proof POS printer with front receipt printout and cubic design

   DATASHEET ODP 333
