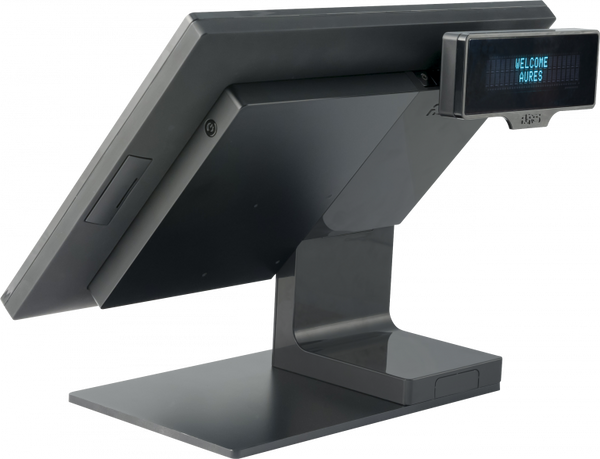

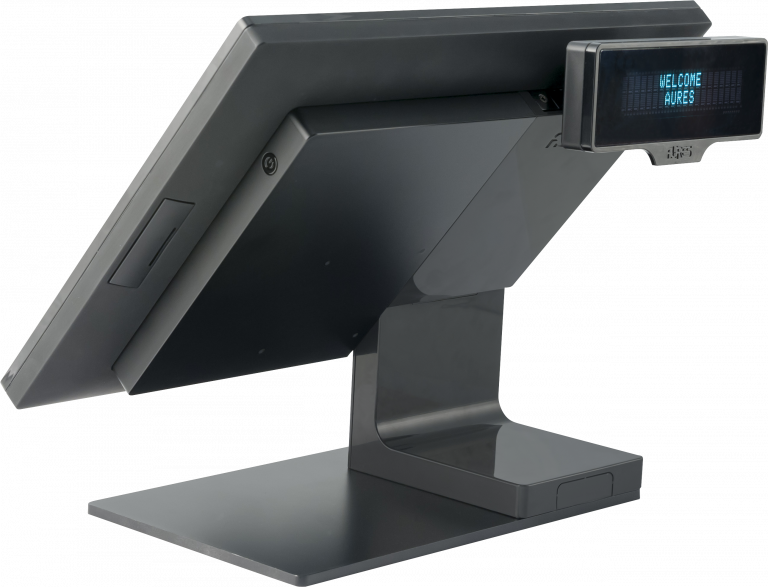

Yuno is a robust but stylish and compact product, designed by AURES to suit the many applications of the POS vertical sectors.

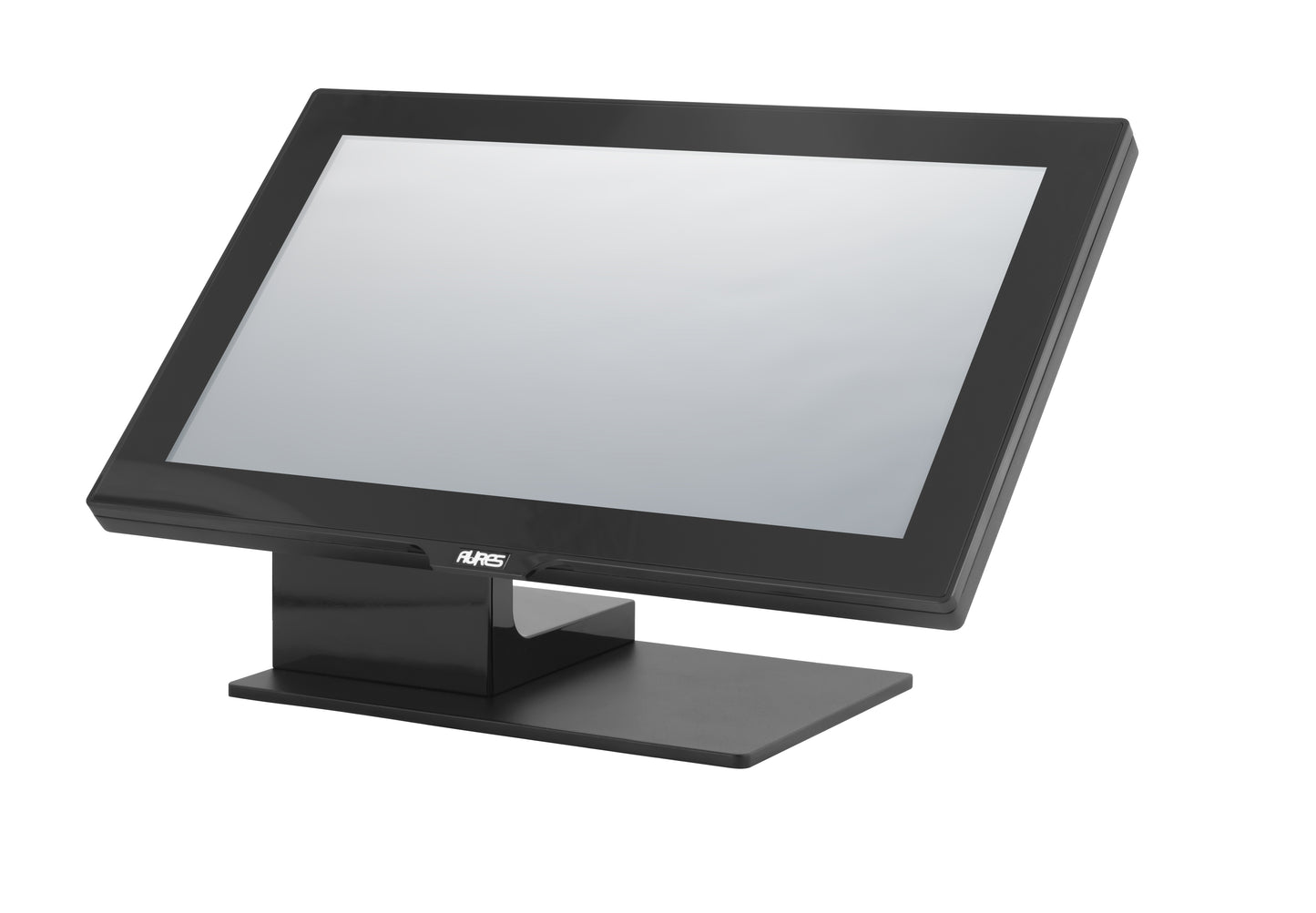

It is a fanless, compact, high-performance system, fitted with a Quad-Core Bay Trail platform; it is available in 2 formats (traditional 4:3 15.1 inch screen and Wide 16:9 15.6 inch screen) and equipped with a shock- and scratch-proof, multi-touch, projected, capacitive screen (PCAP technology).

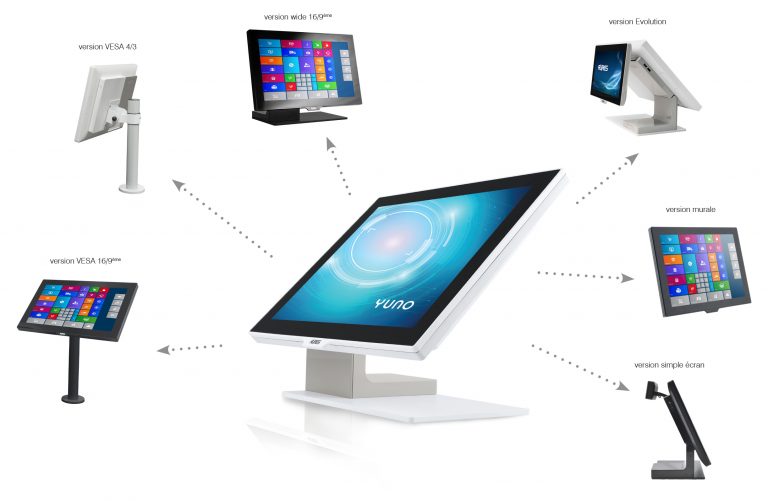

Very flexible, Yuno is offered with VESA fixings options (for use on a wall mount without a base – or on a pole), as well as in a simple touchscreen option (15.1 inch and Wide 15.5-inch monitors).

The standard version features a 64 GB flash disk (2.5 inch SSD) and stands up to dirt in the toughest settings (fat, crumbs, dust, splashes and leftovers in kitchens, restaurants, and bakeries).

It integrates an energy efficient Bay Trail J1900 processor (consuming just 10 W) and a heat-dissipating aluminum structure, ensuring compliance with environmental standards (low carbon footprint).

Yuno is an accessible product whose many features (technology, ergonomics, innovation, and design) make it good value for money. It constitutes a sensible, cost-effective and long-term investment for your EPOS IT equipment.

• 15 '' LED, ergonomic, thin and flat (No display)
• Dalle Projected Capacitive
• LCD 1024 x 768 resolution, LED backlighting
• RAM 4 GB DDR3 SODIMM, 1 slot (→ 8GB)
• Processor INTEL BAY TRAIL J 1900, 4 cores
• Ventilation without Fan
• Flash Disk SSD 128 GB
• Screen 1024 x 768 Backlight LED Option
• Audio Speaker, headset
• Colors Black or White

  The Price without Accessorizes ( MSR, Customer Display , Printer ....)



  YUNO

  Universal multi-configuration & stylish POS hardware

   DATASHEET YUNO




  YUNO

  ROBUST, YET COMPACT AND STYLISH EPOS SYSTEM




  Model	YUNO
  Processor(s)	Broadwell i5-5350U, i3-5010U or Bay Trail J1900
  RAM	DDR3 SODIMM 4 GB as standard (up to 8 GB)
  SSD	2.5’’ 128 GB (2 slots)

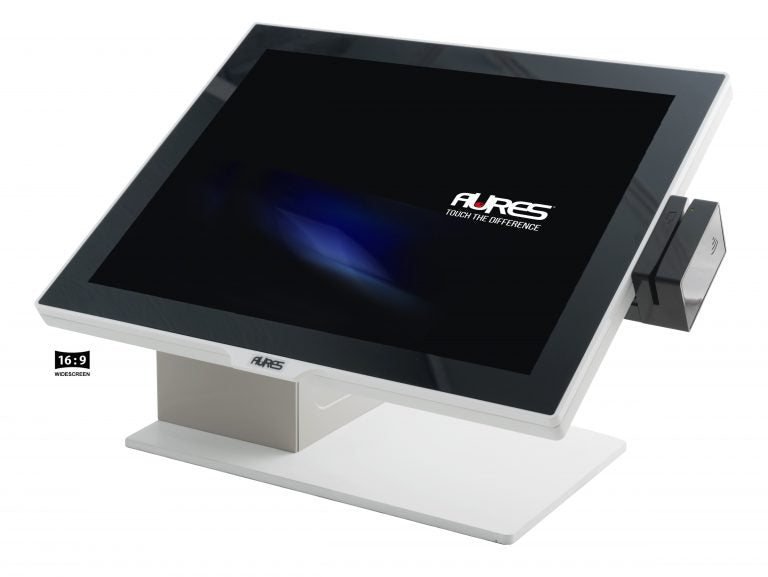

  LCD	15’’ TFT (1024 x 768) or 15.6‘” (1366 x 768) (Yuno wide), LED back-lighting
  Touchscreen	Flat, zero bezel multi-touch screen – with projected, capacitive panel (PCAP)
  Brightness	250 cd/m2
  Input-Output Ports
  Serial	4 serial ports (+ optional 5/12 V power supply for COM3 / COM4)
  USB	4 USB 2.0 + 2 USB 3.0 (for the i5 and i3 versions) 5 USB 2.0 ports + 1 USB 3.0 port (for the J1900 version)
  LAN	10/100/1000 Base-T
  2nd Screen	Port with support for HDMI, DVI and VGA (mini Display Port)
  Cash Drawer	24 / 12 VDC
  Audio	Internal loudspeaker, headphones, micro jack plug
  Power Supply	+ external 19 V DC
  Mini-PCI Express	1 Mini PCI Express slot (WIFI)
  Miscellaneous
  EMI	CE/FCC Class A
  Safety	LVD, external adaptor UL c/us, CE, TUV, etc.
  Operating Temperature	0 ~ 40° C
  Front	Dust- and splash-proof
  Colours	Black or White-Beige
  Materials	Polycarbonate (cover) + aluminium (structure)
  Dimensions (W x D x H)	360.1 x 171.5 x 316.1 mm (15.1’’ format) 402.2 x 171.5 x 295.3 mm (15.6’’ Wide format)
  Weight	10–11 kg depending on the option (15.1’’ format) 11–12 kg (15.6’’ Wide format)
  Compatible OS	Windows 10 IoT Enterprise, Windows 8 Industry, Windows 7 Pro, POS Ready 7, Linux, Androïd
  Optional Extras

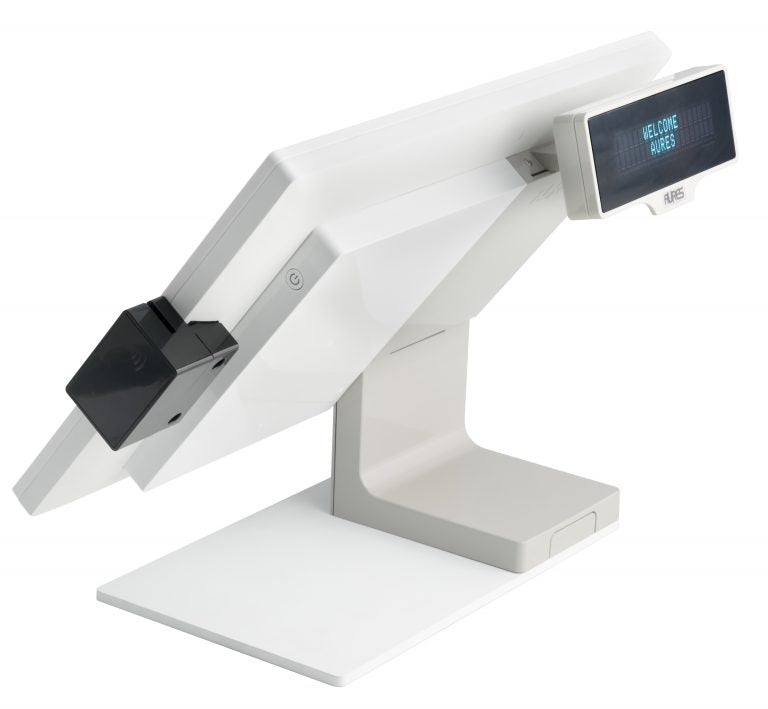

  Multi-Technology reader	reads MSR / RFID (high and low frequencies), Bluetooth, NFC
  Addimat and/or Dallas readers	1 slot, on the right side of EPOS terminal
  Fingerprint reader	Yes

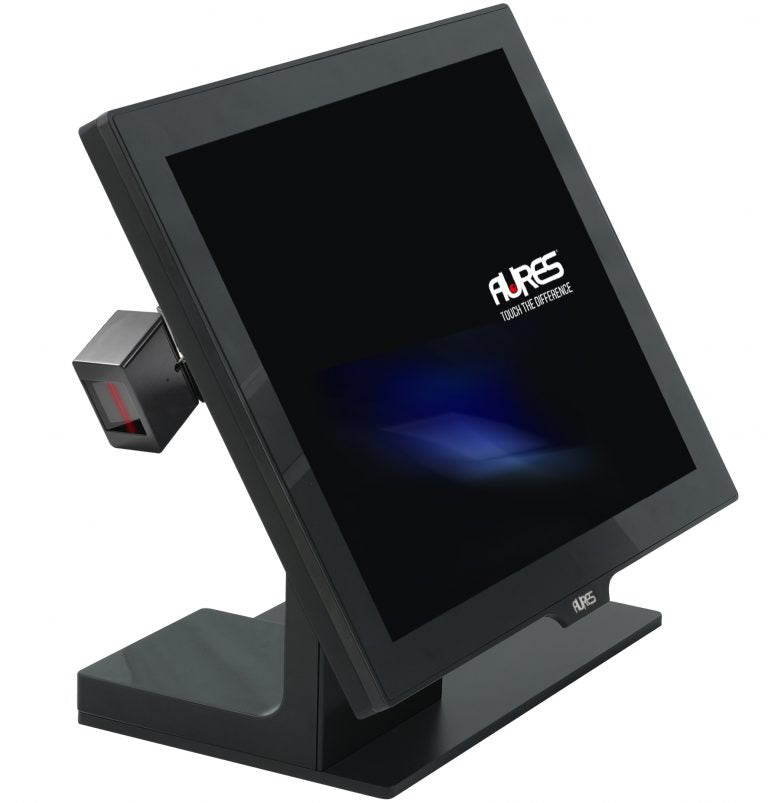

  Barcode reader	1D and 2D
  Customer display	20 characters x 2 lines (VFD)
  2nd screen	10.1’’ - 16:9 1024 x 600 Flat LED screen (EPOS digital signage)
  WIFI	Internal, 802.11 b/g/n
  VESA fixings option(s)	For wall or pole-mounted applications (no base nor stand)
  Simple screen option(s)	available in a monitor version (15.1’’ and 15.6’’ touchscreens)
  YUNO Kiosk versions	(15, 22 and 27’’)





  Warranty

  1Year
