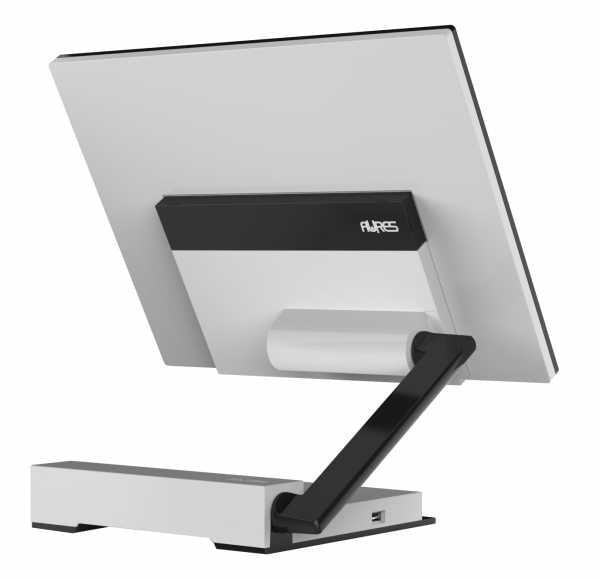

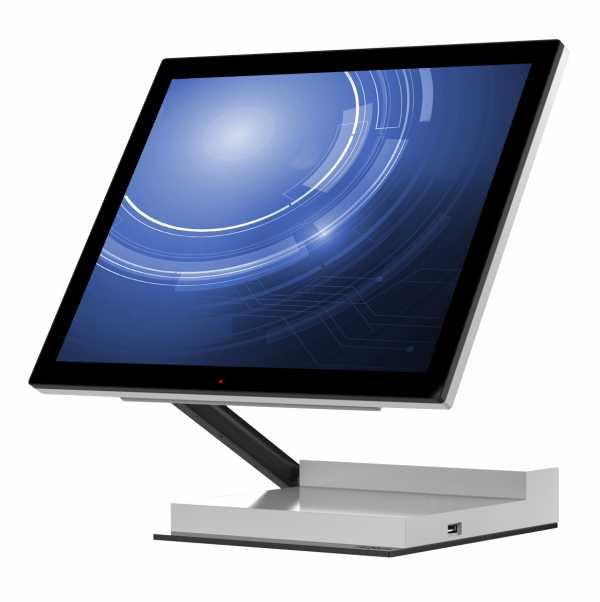

JAZZ Intel Skylake i3-6100U Touch POS 15 ” Inch ( White)
JAZZ Intel Skylake i3-6100U Touch POS 15 ” Inch ( White)
Regular price
435.000 KWD
Regular price
Sale price
435.000 KWD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| Warranty | 1Year |
JAZZ
Slender style with new technology
DRIVER DOWNLOAD
JAZZ
EXCLUSIVE CONCENTRATE OF INNOVATIVE TECHNOLOGIES
| MODEL | JAZZ | ||
| Processors | Intel Bay Trail Celeron J1900 | Intel Skylake i3-6100U | Intel Kaby Lake i5-7300U |
| Memory (RAM) | 4GB DDR3L SODIMM up to 8 GB | 4GB DDR4 SODIMM up to 16 GB |
4GB DDR4 SODIMM up to 16 GB |
| Graphic memory | Intel HD Graphics Core |
||
| SSD | 2 slots ( SSD M.2, 1 x 128 GB in standard) | ||
| LCD | 15” TFT 1024x768 |
||
| Touch panel | Slim and edgeless, - multi-touch - projected capacitive technology |
||
| Brightness | 450 cd/m2 |
||
| IN / OUT PORTS | |||
| Serial | 2 ports (1 x 5V power supply) |
||
| USB | 6 x USB 3.0 (2 on the side) 2 x USB-C One for the motherboard and the processor / another one available) |
||
| LAN | 10/100/1000 Base-T |
||
| 2nd screen (digital display) | Supports HDMI, DVI, VGA and Display Port via USB-C |
||
| Audio | Integrated loud speaker |
||
| Power supply | External -/+19V 65W |
||
| VARIOUS | |||
| EMI | CE/FCC Class B |
||
| Security | LVD, external adaptor UL /c/us, CE, TUV, etc. |
||
| Operating temperature | 0~40° |
||
| Front | Dust and splashproof |
||
| Colours | Dark grey or white |
||
| Dimensions (L x D x H) | 340 x 198,74 x 382,58 (mm) |
||
| Weight | About 4.5 kg |
||
| Compatible OS | Windows 7/10, Linux, Android | Windows 7/10, Linux | Windows 10, Linux |
| OPTIONS | |||
| Multi-technology reader | MSR / RFID (high and low frequencies) |
||
| Dallas and Addimat readers | Can be mounted on both sides of the EPOS |
||
| Biometric reader | Fingerprint reader integrated in the base |
||
| Barcode reader | Bluetooth reader integrated to screen side (and detachable) |
||
| Customer display | 20 characters x 2 lines (TFT) – multilingual (including Chinese) |
||
| 2nd screen (digital display) | screen 10” 16:9, 1024 x 600 (TFT) |
||
| WIFI (integrated in standard) | 802.11 ac and Bluetooth |
||
| RAID | Hardware RAID 1 (with the i5 version only) |
||
| VESA Fixings 75 x 75 | For pole mounted version (JAZZPOLE) |
||
| Kiosk Version | Self Check Out Kiosk (JAZZSCO) |
