Aures Yuno Intel Bay Trail Celeron Touch POS 15” Inch ( Black )
Aures Yuno Intel Bay Trail Celeron Touch POS 15” Inch ( Black )
Yuno is a robust but stylish and compact product, designed by AURES to suit the many applications of the POS vertical sectors.
It is a fanless, compact, high-performance system, fitted with a Quad-Core Bay Trail platform; it is available in 2 formats (traditional 4:3 15.1 inch screen and Wide 16:9 15.6 inch screen) and equipped with a shock- and scratch-proof, multi-touch, projected, capacitive screen (PCAP technology).

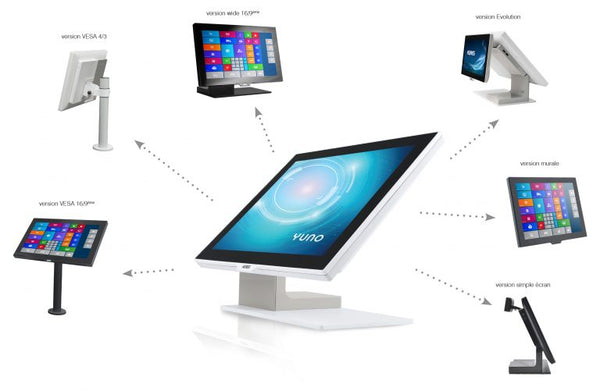

Very flexible, Yuno is offered with VESA fixings options (for use on a wall mount without a base – or on a pole), as well as in a simple touchscreen option (15.1 inch and Wide 15.5-inch monitors).
The standard version features a 64 GB flash disk (2.5 inch SSD) and stands up to dirt in the toughest settings (fat, crumbs, dust, splashes and leftovers in kitchens, restaurants, and bakeries).
It integrates an energy efficient Bay Trail J1900 processor (consuming just 10 W) and a heat-dissipating aluminum structure, ensuring compliance with environmental standards (low carbon footprint).
Yuno is an accessible product whose many features (technology, ergonomics, innovation, and design) make it good value for money. It constitutes a sensible, cost-effective and long-term investment for your EPOS IT equipment.
- 15 '' LED, ergonomic, thin and flat (No display)
- Dalle Projected Capacitive
- LCD 1024 x 768 resolution, LED backlighting
- RAM 4 GB DDR3 SODIMM, 1 slot (→ 8GB)
- Processor INTEL BAY TRAIL J 1900, 4 cores
- Ventilation without Fan
- Flash Disk SSD 128 GB
- Screen 1024 x 768 Backlight LED Option
- Audio Speaker, headset
-
Colors Black or White
The Price without Accessorizes ( MSR, Customer Display , Printer ....)
YUNO
Universal multi-configuration & stylish POS hardware
DATASHEET YUNO
YUNO
ROBUST, YET COMPACT AND STYLISH EPOS SYSTEM
Model YUNO Processor(s) Broadwell i5-5350U, i3-5010U or Bay Trail J1900
RAM DDR3 SODIMM 4 GB as standard (up to 8 GB)
SSD 2.5’’ 128 GB (2 slots)
LCD 15’’ TFT (1024 x 768) or 15.6‘” (1366 x 768) (Yuno wide), LED back-lighting
Touchscreen Flat, zero bezel multi-touch screen – with projected, capacitive panel (PCAP)
Brightness 250 cd/m2
Input-Output Ports Serial 4 serial ports (+ optional 5/12 V power supply for COM3 / COM4)
USB 4 USB 2.0 + 2 USB 3.0 (for the i5 and i3 versions)
5 USB 2.0 ports + 1 USB 3.0 port (for the J1900 version)LAN 10/100/1000 Base-T
2nd Screen Port with support for HDMI, DVI and VGA (mini Display Port)
Cash Drawer 24 / 12 VDC
Audio Internal loudspeaker, headphones, micro jack plug
Power Supply + external 19 V DC
Mini-PCI Express 1 Mini PCI Express slot (WIFI)
Miscellaneous EMI CE/FCC Class A
Safety LVD, external adaptor UL c/us, CE, TUV, etc.
Operating Temperature 0 ~ 40° C
Front Dust- and splash-proof
Colours Black or White-Beige
Materials Polycarbonate (cover) + aluminium (structure)
Dimensions (W x D x H) 360.1 x 171.5 x 316.1 mm (15.1’’ format)
402.2 x 171.5 x 295.3 mm (15.6’’ Wide format)Weight 10–11 kg depending on the option (15.1’’ format)
11–12 kg (15.6’’ Wide format)Compatible OS Windows 10 IoT Enterprise, Windows 8 Industry, Windows 7 Pro, POS Ready 7, Linux, Androïd

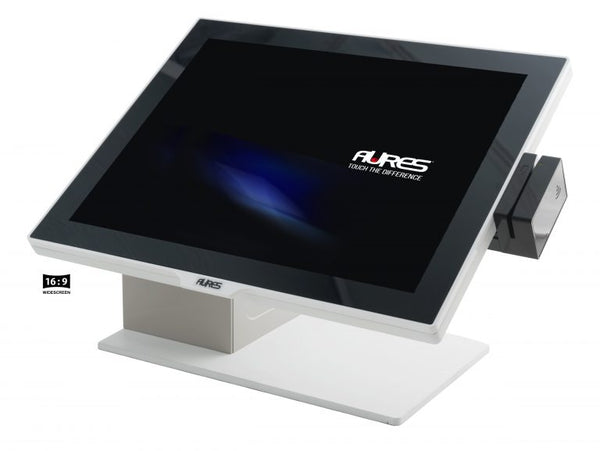

Optional Extras Multi-Technology reader reads MSR / RFID (high and low frequencies), Bluetooth, NFC
Addimat and/or Dallas readers 1 slot, on the right side of EPOS terminal

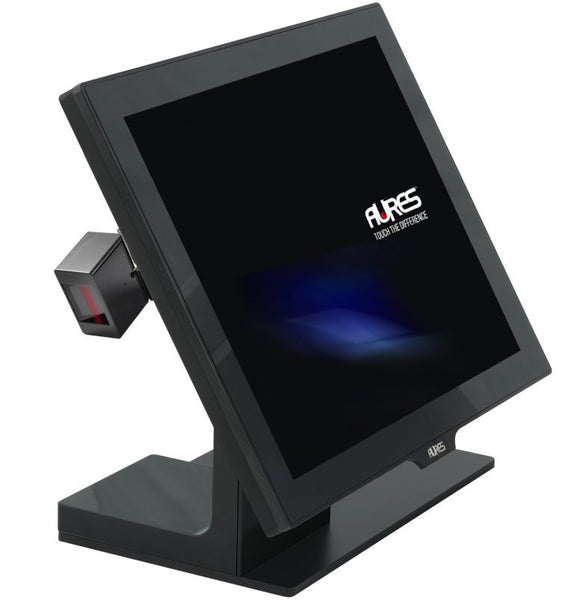

Fingerprint reader Yes Barcode reader 1D and 2D

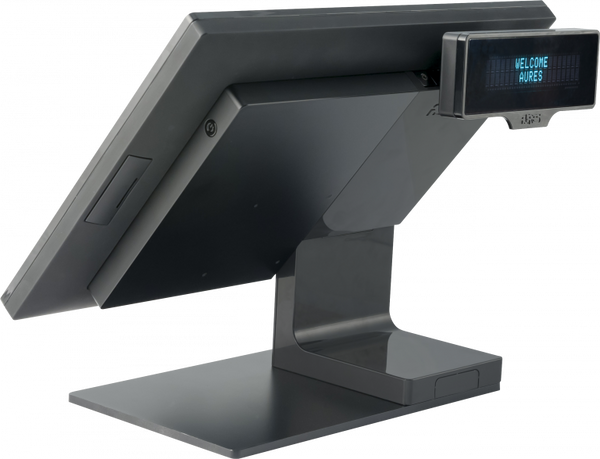

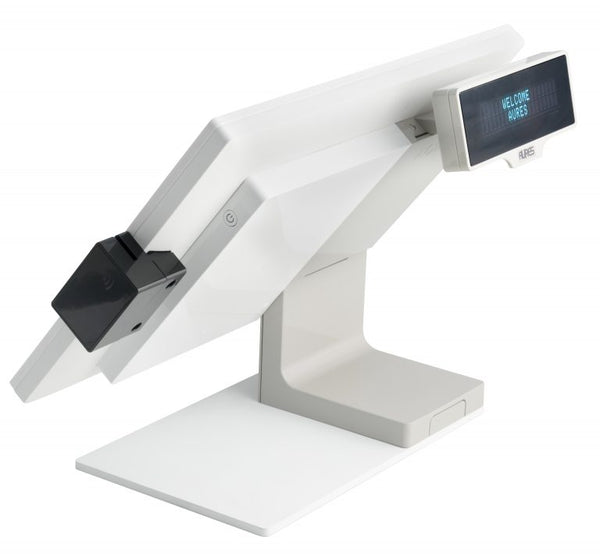

Customer display 20 characters x 2 lines (VFD)

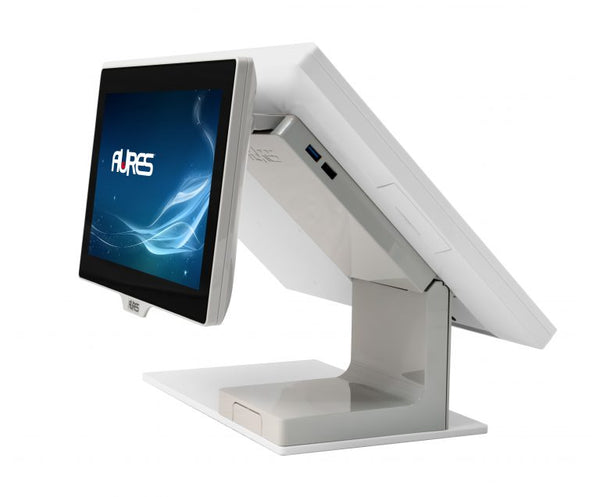

2nd screen 10.1’’ - 16:9 1024 x 600 Flat LED screen (EPOS digital signage)
WIFI Internal, 802.11 b/g/n
VESA fixings option(s) For wall or pole-mounted applications (no base nor stand)
Simple screen option(s) available in a monitor version (15.1’’ and 15.6’’ touchscreens)
YUNO Kiosk versions (15, 22 and 27’’)
Warranty 1Year
