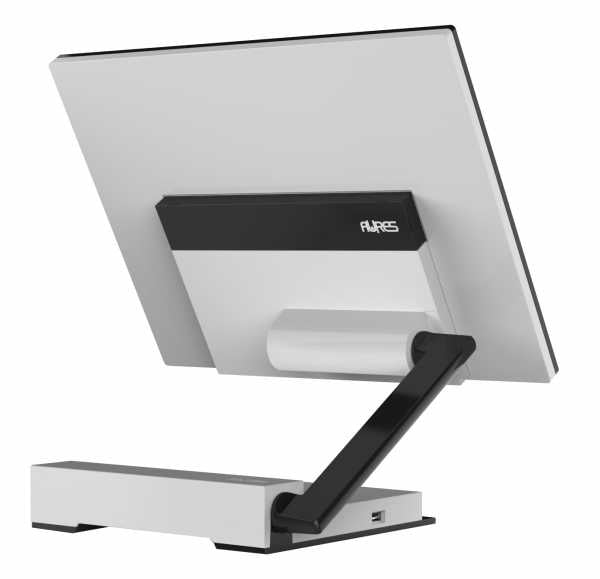

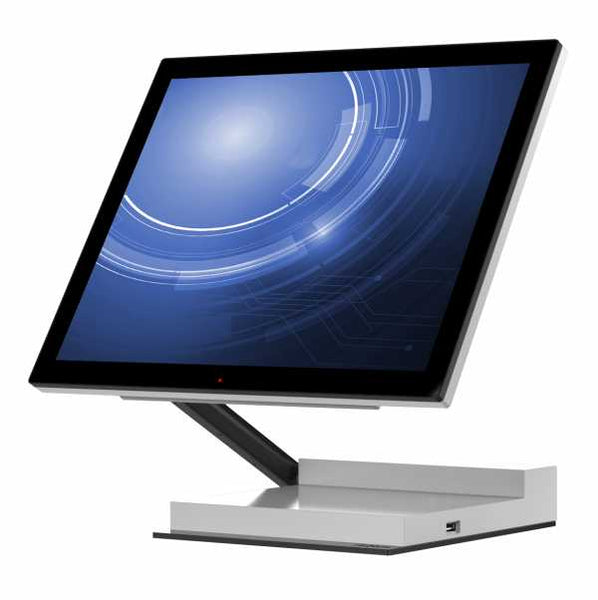

JAZZ Intel Skylake i3-6100U Touch POS 15 ” Inch ( White)

JAZZ Intel Skylake i3-6100U Touch POS 15 ” Inch ( White)

435.000 KWD
435.000 KWD
تخفيض السعر نفذ
الشحن تحسب عند الدفع

Warranty 1Year


JAZZ

Slender style with new technology

 DATASHEET JAZZ
DRIVER DOWNLOAD

JAZZ

EXCLUSIVE CONCENTRATE OF INNOVATIVE TECHNOLOGIES


MODEL JAZZ
Processors Intel Bay Trail Celeron J1900 Intel Skylake i3-6100U Intel Kaby Lake i5-7300U
Memory (RAM) 4GB DDR3L SODIMM up to 8 GB 4GB DDR4 SODIMM
up to 16 GB		 4GB DDR4 SODIMM
up to 16 GB
Graphic memory Intel HD Graphics Core
SSD 2 slots ( SSD M.2, 1 x 128 GB in standard)
LCD 15” TFT 1024x768
Touch panel Slim and edgeless, - multi-touch - projected capacitive technology
Brightness 450 cd/m2
IN / OUT PORTS
Serial 2 ports (1 x 5V power supply)
USB 6 x USB 3.0 (2 on the side)
2 x USB-C
One for the motherboard and the processor / another one available)
LAN 10/100/1000 Base-T
2nd screen (digital display) Supports HDMI, DVI, VGA and Display Port via USB-C
Audio Integrated loud speaker
Power supply External -/+19V 65W
VARIOUS
EMI CE/FCC Class B
Security LVD, external adaptor UL /c/us, CE, TUV, etc.
Operating temperature 0~40°
Front Dust and splashproof
Colours Dark grey or white
Dimensions (L x D x H) 340 x 198,74 x 382,58 (mm)
Weight About 4.5 kg
Compatible OS Windows 7/10, Linux, Android Windows 7/10, Linux Windows 10, Linux
OPTIONS
Multi-technology reader MSR / RFID (high and low frequencies)
Dallas and Addimat readers Can be mounted on both sides of the EPOS
Biometric reader Fingerprint reader integrated in the base
Barcode reader Bluetooth reader integrated to screen side (and detachable)
Customer display 20 characters x 2 lines (TFT) – multilingual (including Chinese)
2nd screen (digital display) screen 10” 16:9, 1024 x 600 (TFT)
WIFI (integrated in standard) 802.11 ac and Bluetooth
RAID Hardware RAID 1 (with the i5 version only)
VESA Fixings 75 x 75 For pole mounted version (JAZZPOLE)
Kiosk Version Self Check Out Kiosk (JAZZSCO)
